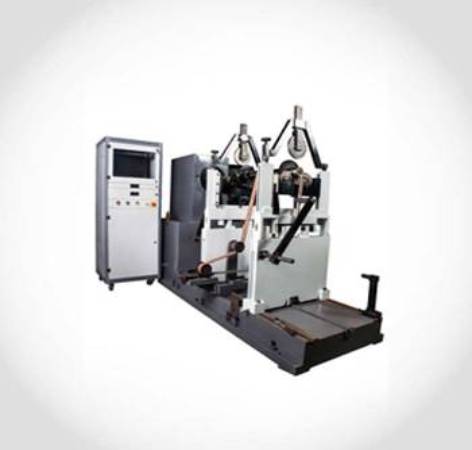

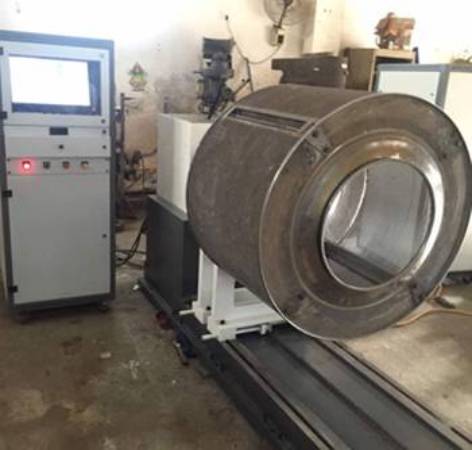

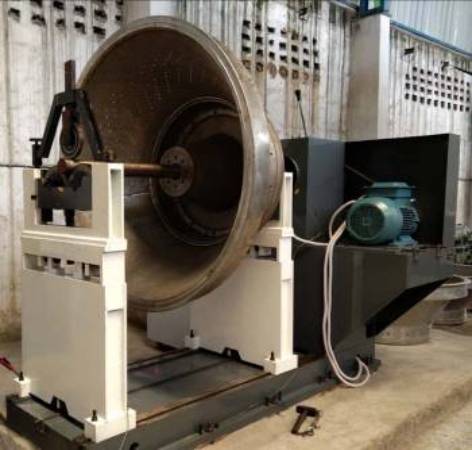

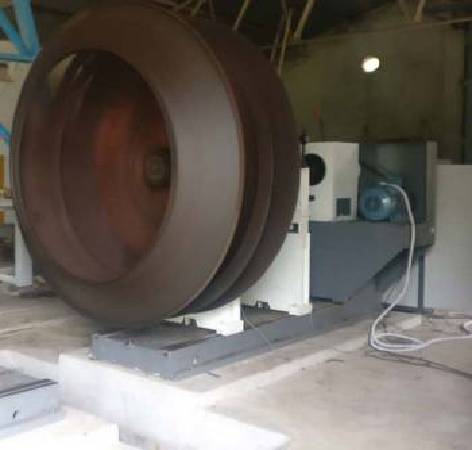

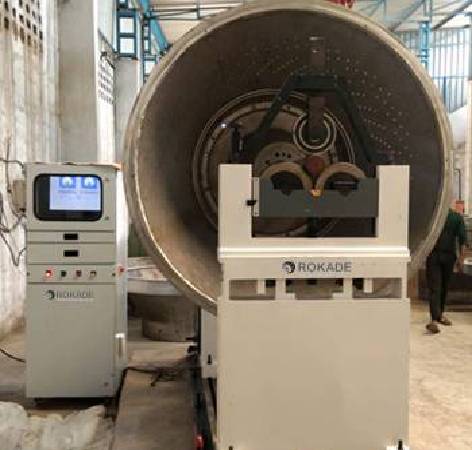

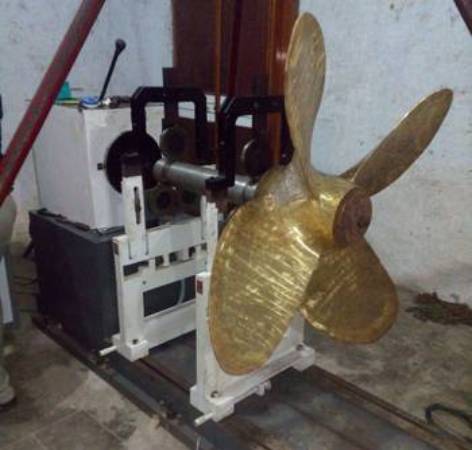

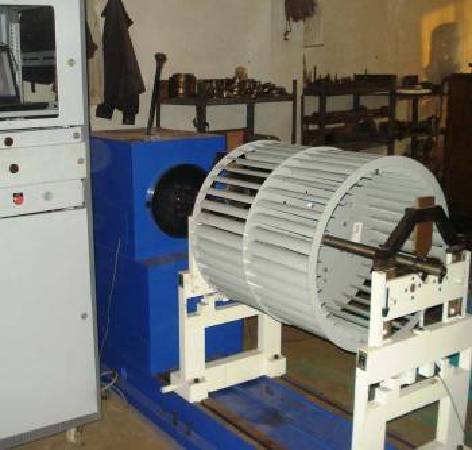

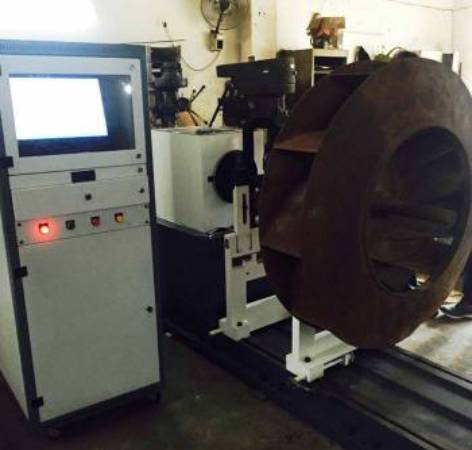

Universal Joint Balancer

  • universal-joint-balancer
  • universal-joint-balancer
  • universal-joint-balancer
  • universal-joint-balancer
  • universal-joint-balancer
  • universal-joint-balancer
  • universal-joint-balancer
universal-joint-balancer universal-joint-balancer universal-joint-balancer universal-joint-balancer universal-joint-balancer universal-joint-balancer universal-joint-balancer

Features

  • Special designed brackets can effectively transmit mechanical force
  • The durable and reliable sensor possesses high sensitivity
  • The permanent calibration brings high accuracy
  • Driven by universal couplingtransmit the power steadily
  • Applicable to rotors which can't be driven by belt or need large power
  • Advanced electrical measuring system and friendly man-machine interface
  • PHW series are applicable for blower large-sized motor pump centrifuge rubber roller drying cylinder internal-combustion engine etc

Technical characteristics

Small size of workpieces

Technical data at a glance PHW-160H PHW-300H PHW-500H
Mass Scope of Workpiece(kg) 160 300 500
Max Diameter of Workpiece(mm) ɸ 1000 ɸ 1220 ɸ 1500
Distance Between Two Support Bearings(mm) Min 60 Min 60 Min 60
Journal Diameter Scope of Workpiece(mm) ɸ 15∽ 752) ɸ 15∽ 752) ɸ 15∽ 752)
Max Distance between Driving Flange and Right Bearing Support (mm) 1500 1500 1500
Rotational Speed of the Main Axis(r/min) 600,10954) 600,10954) 600,10954)
Motor Power (kw) 31) 31) 41)
Torque of Universal Joint Shaft(N·m) 60 60 60
Length of Bed (mm) 2500 2500 2500
Min Achievable Residual Unbalance Amount(emar) ≤0.5ġ mm/kg ≤0.5ġ mm/kg ≤0.5ġ mm/kg

Medium size of workpieces

Technical data at a glance PHW-1000H PHW-2000H PHW-3000H PHW-5000
Mass Scope of Workpiece(kg) 1000 2000 3000 5000
Max Diameter of Workpiece(mm) ɸ1600 ɸ1800 ɸ2100 ɸ2400
Distance Between Two Support Bearings(mm) Min 60 Min 60 Min 60 Min 320
Journal Diameter Scope of Workpiece(mm) ɸ25∽1203) ɸ25∽1203) ɸ25∽1203) ɸ40∽380
Max Distance between Driving Flange and Right Bearing Support (mm) 1600 1900 1900 2500
Rotational Speed of the Main Axis(r/min) 600,10954) 485,8184) 133,225,396.634,9704) 192,325,571,915,14004)
Motor Power (kw) 41) 7.51) 7.51) 151)
Torque of Universal Joint Shaft(N·m) 250 300 700 1250
Length of Bed (mm) 2500 3000 3000 4000
Min Achievable Residual Unbalance Amount(emar) ≤0.5ġ mm/kg ≤0.5ġ mm/kg ≤0.5ġ mm/kg ≤0.5ġ mm/kg

Large size of workpieces

Technical data at a glance PHW-10000H PHW-15000 PHW-20000 PHW-30000
Mass Scope of Workpiece(kg) 10000 15000 20000 30000
Max Diameter of Workpiece(mm) ɸ2400 ɸ2800 ɸ2800 ɸ3000
Distance Between Two Support Bearings(mm) Min 320 Min 450 Min 450 Min 500
Journal Diameter Scope of Workpiece(mm) ɸ60∽ 400 ɸ60∽ 400 ɸ60∽ 400 ɸ80∽ 500
Max Distance between Driving Flange and Right Bearing Support (mm) 4000 4200 5200 6000
Rotational Speed of the Main Axis(r/min) Stepless speed regulation 195,336,561,916,13744) 195,336,561,916,13744) 127,218,365,596,895,11044)
Motor Power (kw) 221) 301) 551) 751)
Torque of Universal Joint Shaft(N·m) 2250 2250 5000 7800
Length of Bed (mm) 5500 6000 7000 8000
Min Achievable Residual Unbalance Amount(emar) ≤0.5ġ mm/kg ≤1ġ mm/kg ≤1ġ mm/kg ≤1ġ mm/kg

Huge size of workpieces

Technical data at a glance PHW-40000 PHW-50000 PHW-90000
Mass Scope of Workpiece(kg) 40000 50000 90000
Max Diameter of Workpiece(mm) ɸ3400 ɸ3600 ɸ4200
Distance Between Two Support Bearings(mm) Min 500 Min 500 Min 800
Journal Diameter Scope of Workpiece(mm) ɸ 80∽560 ɸ 80∽560 ɸ 80∽700
Max Distance between Driving Flange and Right Bearing Support (mm) 7000 8000 10000
Rotational Speed of the Main Axis(r/min) ≥120 ≥120 ≥120
Motor Power (kw) 901) 1101) 2201)
Torque of Universal Joint Shaft(N·m) 9000 11000 15000
Length of Bed (mm) 9000 10000 12000
Min Achievable Residual Unbalance Amount(emar) ≤1ġ mm/kg ≤1ġ mm/kg ≤1ġ mm/kg
