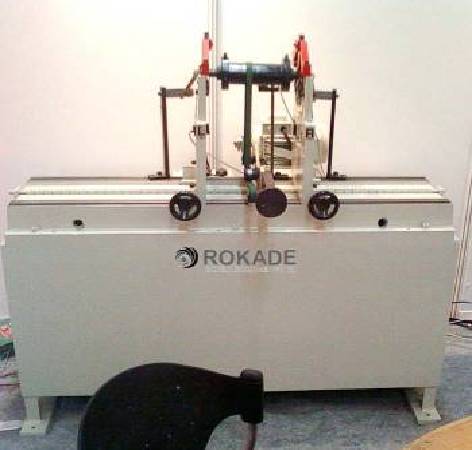

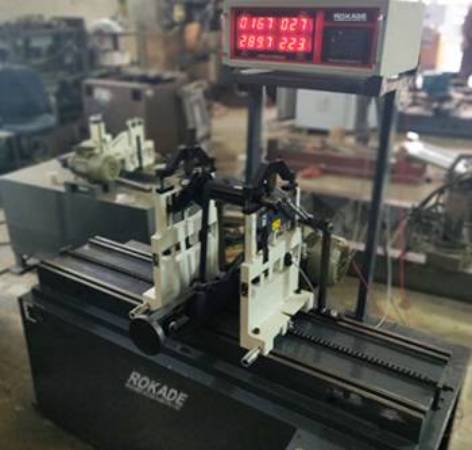

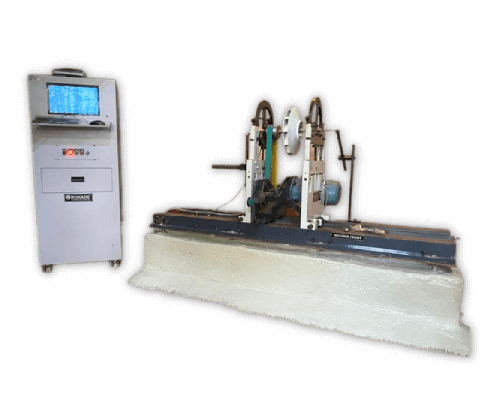

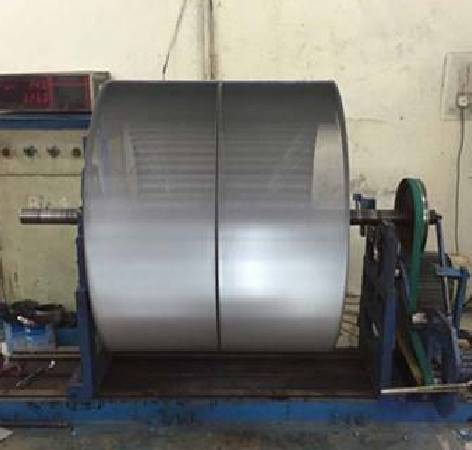

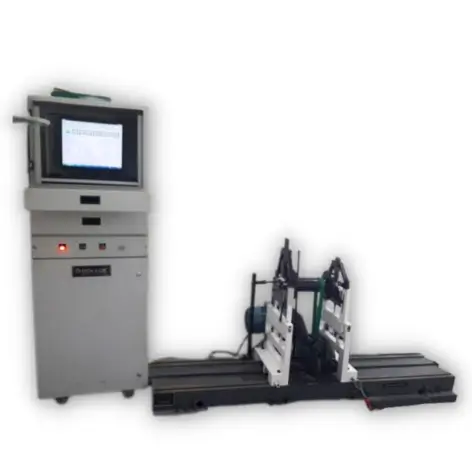

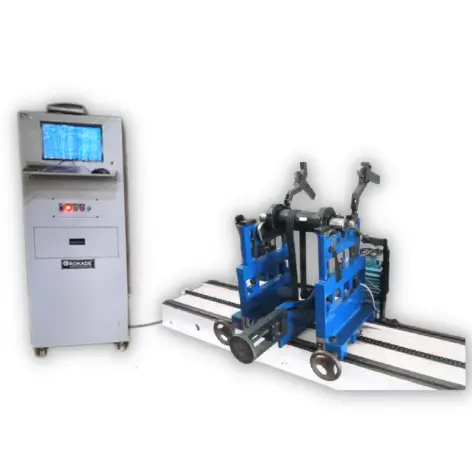

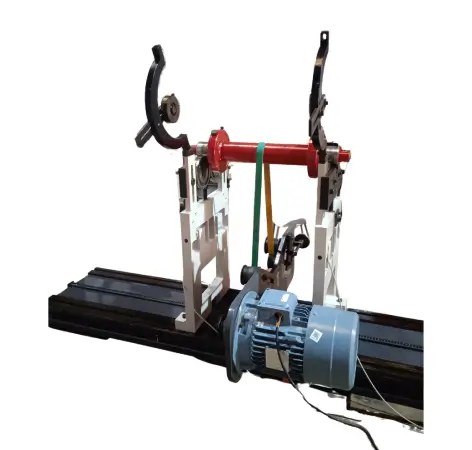

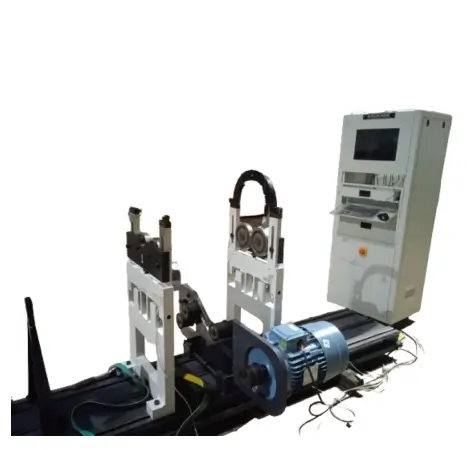

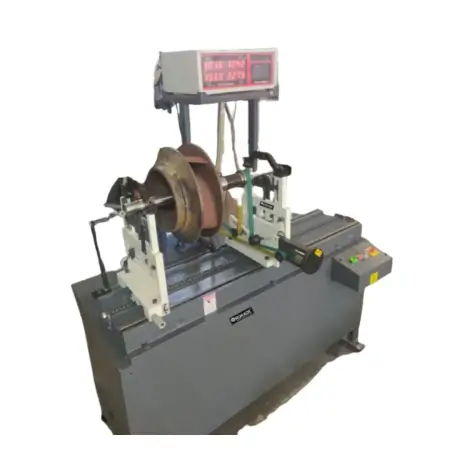

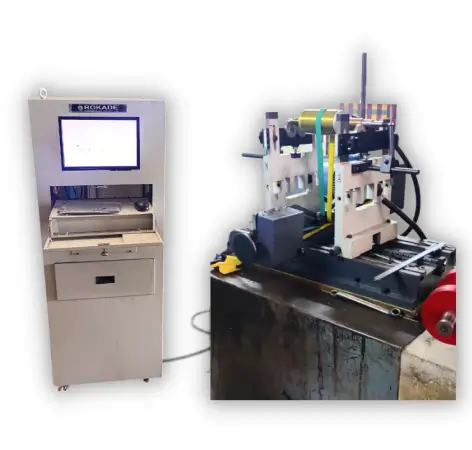

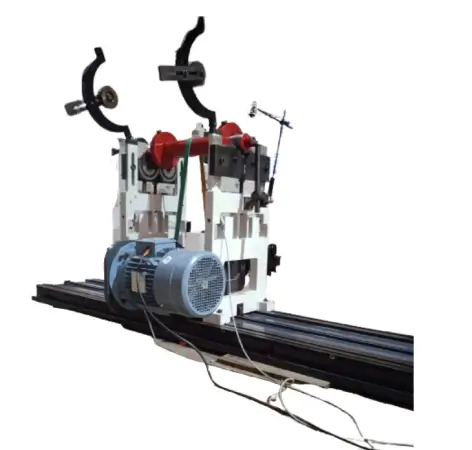

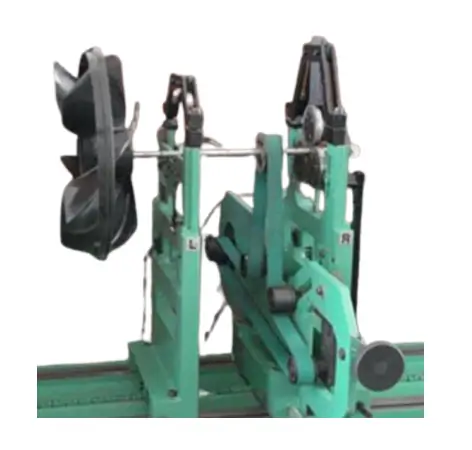

Belt Drive Balancer

  • Belt Drive Balancer
  • Belt Drive Balancer
  • Belt Drive Balancer
  • Belt Drive Balancer
  • Belt Drive Balancer
  • Belt Drive Balancer
  • Belt Drive Balancer
  • Belt Drive Balancer
  • Belt Drive Balancer
Belt Drive Balancer Belt Drive Balancer Belt Drive Balancer Belt Drive Balancer Belt Drive Balancer Belt Drive Balancer Belt Drive Balancer Belt Drive Balancer Belt Drive Balancer

Features

  • Specially designed brackets transmit mechanical force with low vibration damping
  • Durable and reliable sensor possesses good linearity
  • Permanent calibration brings high accuracy with a permission of large initial unbalance amount
  • Belt-driving offers higher precision and easier operation
  • Advanced electrical measuring system and friendly man-machine interface
  • Modular design offers a wide range of application
  • PHQ series are applicable for balancing rotating parts of motor fan impeller pump impeller turbocharger crankshaft centrifuge roller spindle etc

Technical characteristics

Small size of workpieces

Technical data at a glance PHQ-1.6/5 PHQ-1.6A/5A PHQ-G5 PHQ-16A
Max Mass of Workpiece(kg) 1.6/5 1.6/5 5 16
Max Diameter of Workpiece (mm) ɸ 300 ɸ 300 ɸ 300 ɸ 300
Distance Between Two Support Bearings (mm) 15∽500 15∽500 15∽500 15∽500
Journal Diameter Scope of Workpiece (mm) ɸ 3∽40(120o) ɸ 3∽40 ɸ 3∽40 ɸ 3∽40
Diameter Scope of Driving Belt (mm) ɸ 20∽85 ɸ 15∽150 ɸ 20∽85 ɸ 15∽150
Rotational Speed when the Diameter of Driving Belt is 100mm (r/min) ∽14701) ∽14701) ∽14701) ∽14701)
Motor Power (kw) 0.2DC 0.2DC 0.2DC 0.2DC
Min Achievable Residual Unbalance Amount (emar) ≤ 0.15ġ mm/kg ≤ 0.15ġ mm/kg ≤ 0.15ġ mm/kg ≤ 0.15ġ mm/kg

Medium size of workpieces

Technical data at a glance PHQ-50 PHQ-160H PHQ-300H PHQ-500H
Max Mass of Workpiece(kg) 50 160 300 500
Max Diameter of Workpiece (mm) ɸ 700 ɸ 1000 ɸ 1220 ɸ 1500
Distance Between Two Support Bearings (mm) 80∽ 700 130∽ 1270 130∽ 1270 130∽ 1270
Journal Diameter Scope of Workpiece (mm) ɸ 8∽ 753) ɸ 15~753) ɸ 15~753) ɸ 15~753)
Diameter Scope of Driving Belt (mm) ɸ 18∽ 200 ɸ max400 ɸ max500 ɸ max600
Rotational Speed when the Diameter of Driving Belt is 100mm (r/min) 700,10501) ∽ 1176 ∽ 1176 ∽ 1176
Motor Power (kw) 0.752) 1.52) 1.52) 2.22)
Length of Bed (mm) 1500 1500 1500
Min Achievable Residual Unbalance Amount (emar) ≤0.15ġ mm/kg ≤0.15ġ mm/kg ≤0.15ġ mm/kg ≤0.15ġ mm/kg

Large size of workpieces

Technical data at a glance PHQ-1000H PHQ-2000H PHQ-3000H PHQ-5000H
Max Mass of Workpiece(kg) 1000 2000 3000 5000
Max Diameter of Workpiece (mm) ɸ 1600 ɸ 1800 ɸ 2100 ɸ 2400
Distance Between Two Support Bearings (mm) 160∽1780 160∽1780 160∽2280 500∽2200
Journal Diameter Scope of Workpiece (mm) ɸ 25∽1204) ɸ 25∽1204) ɸ 25∽1204) ɸ 40∽380
Diameter Scope of Driving Belt (mm) ɸ max700 ɸ max800 ɸ max900 ɸ 50∽1000
Rotational Speed when the Diameter of Driving Belt is 100mm (r/min) 1330,19181) 684,9861) 921,13291) 795,18531)
Motor Power (kw) 42) 5.52) 7.52) 152)
Length of Bed (mm) 2000 2000 2500 2500
Min Achievable Residual Unbalance Amount (emar) ≤0.15ġ mm/kg ≤0.15ġ mm/kg ≤0.15ġ mm/kg ≤0.5ġ mm/kg

Huge size of workpieces

Technical data at a glance PHQ-10000 PHQ-15000 PHQ-20000
Max Mass of Workpiece(kg) 10000 15000 20000
Max Diameter of Workpiece (mm) ɸ 2400 ɸ 2800 ɸ 2800
Distance Between Two Support Bearings (mm) 750∽ 4600 750∽ 5600 750∽ 5600
Journal Diameter Scope of Workpiece (mm) ɸ 60∽ 400 ɸ 60∽ 400 ɸ 60∽ 400
Diameter Scope of Driving Belt (mm) ɸ 50∽ 1000 ɸ 100∽ 1300 ɸ 100∽ 1300
Rotational Speed when the Diameter of Driving Belt is 100mm (r/min) 795,18531) 795,18531) 795,18531)
Motor Power (kw) 18.52) 302) 302)
Length of Bed (mm) 2500 2500 2500
Min Achievable Residual Unbalance Amount (emar) ≤0.5ġ mm/kg ≤0.5ġ mm/kg ≤0.5ġ mm/kg
